YONGXING Boiler presents cutting-edge WNS series gas steam boiler control panels, which are engineered for optimal performance and safety in demanding industrial applications.
Intelligent Operation Management
During the operation of the gas steam boiler, the boiler control panel collects real-time sensor data to maintain ideal operating conditions. Our PLC evaluates this data and executes precise commands, featuring:
Automated water level regulation with a dual-color gauge and alarm system
Pressure surge protection equipped with safety interlocks
Instant response to operational anomalies
Core Components of YONGXING Boiler WNS Control Panel
1. PLC Controller
As the "brain" of the system, the programmable logic controller processes sensor signals and executes control logic to ensure safe and efficient operation.
2. Human-Machine Interface (HMI)
Equipped with premium touchscreens from Siemens/Schneider, it displays:
Real-time pressure and temperature data
Water level indicators
Exhaust temperature readings
Operational status updates

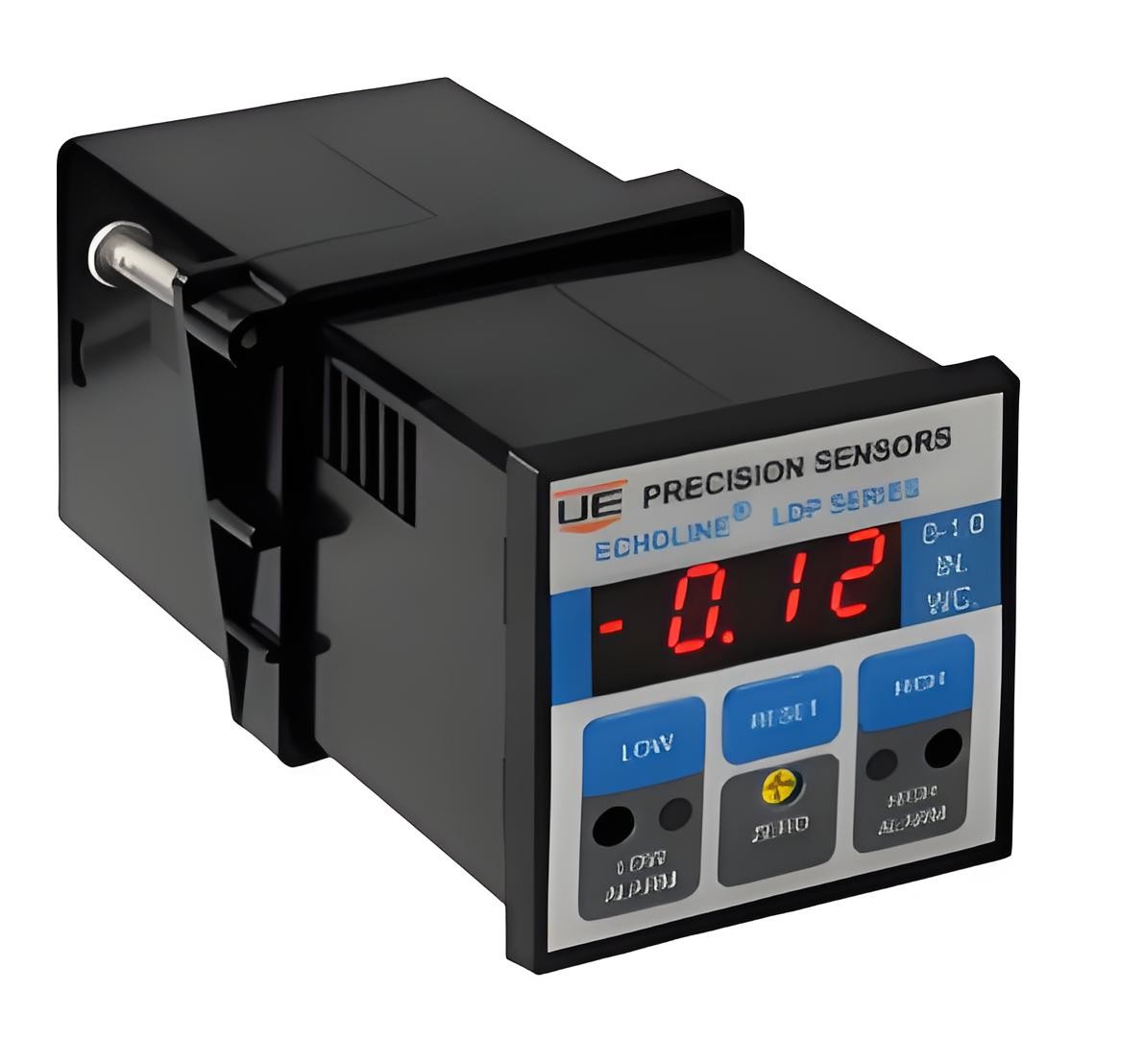

3. Precision Sensors
Temperature Sensors: Monitor the temperatures of steam, water, and exhaust (PT100, up to 400℃).
Pressure Sensors: With a capacity of 1.6 MPa, accompanied by pressure controllers.
Water Level Controller: Prevents dry burning and overflow through real-time monitoring.
4. Advanced Combustion Control
Electronic air-fuel ratio management
Emergency shut-off valves
Flame detection systems
Safety & Efficiency Assurance
98% Operational Efficiency: Achieved through optimized combustion control.
Ultra-Low Emissions: NOx emissions <20ppm with 93.3% combustion efficiency.
Rapid Response: Reaches steam capacity within 5 minutes.
Comprehensive Protection: Includes pressure relief valves, overheat protection, and emergency shutdown functions.
