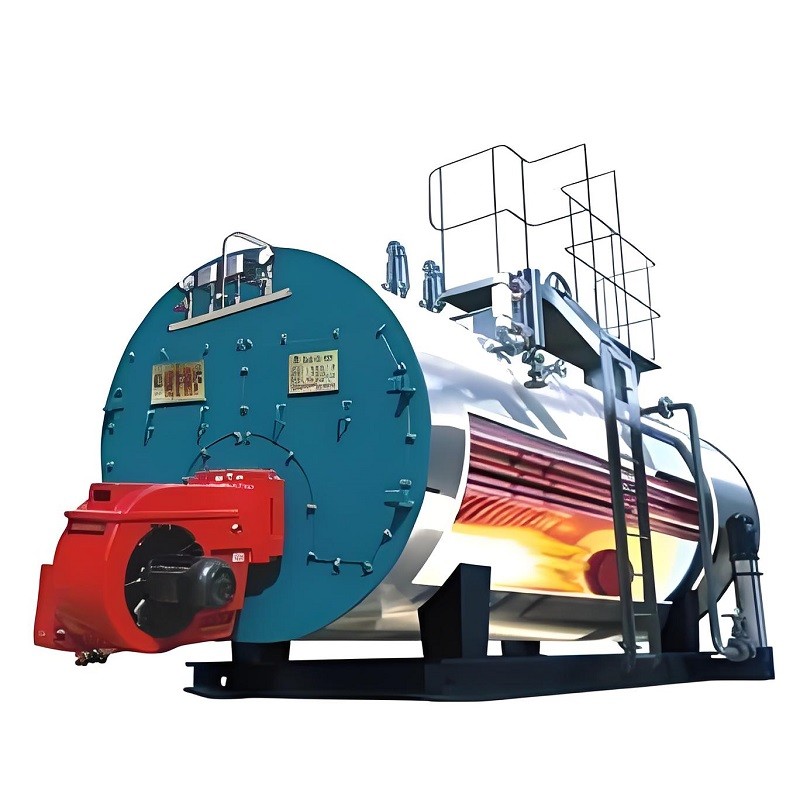

Why WNS Gas Boilers Feature Corrugated Furnace Design

By YONGXING Boiler/July30,2025

Introduction

The furnace design of gas steam boilers is crucial for stable operation. When the burner ignites, the flame requires an optimally designed combustion space, which directly impacts fuel efficiency, heat transfer, and overall boiler performance. This article explores the structural advantages, material selection, and production processes behind the corrugated furnace design of WNS series boilers.

1. Furnace Structure Design

High-Performance Construction

  • Material: Adopts high-temperature and corrosion-resistant boiler steel plates (Q345R/Q245B)
  • Design Focus: Optimizes heat transfer efficiency while ensuring structural integrity

Key Benefits

  • Withstands intense thermal loads
  • Enhances equipment durability
  • Significantly extends service life
  • Offers 15-20% greater heat transfer efficiency
  • Boasts a 30% longer lifespan than standard designs
  • Achieves 5-8% higher thermal efficiency

Material Specifications (Q245B)

PropertySpecification
Carbon (C)≤0.20%
Silicon (Si)≤0.35%
Manganese (Mn)0.30-0.70%
Yield Strength≥245 MPa
Tensile Strength375-500 MPa
Elongation≥21% (for thickness ≤16mm)

2. Core Design Principles

Enhanced Heat Exchange

  • The cylindrical corrugated shape extends the retention time of flue gas
  • Increased surface area improves contact between hot gases and water
  • The wet-back design (fully water-immersed) ensures efficient heat transfer

Mechanical Advantages

  • Exhibits superior response to thermal expansion and contraction
  • Ideal for frequent start-stop operations
  • Maintains structural stability under varying pressures

Precision Manufacturing Process

  • Material Procurement: Uses certified steel from qualified suppliers
  • Barrel Formation: Precision rolling into a cylindrical form with professional welding for extended sections
  • Spin Forming: High-temperature rotary press molding with a controlled cooling process
  • Quality Verification: Rigorous testing at all production stages to ensure compliance with design specifications

3. Optimal Combustion Indicators

Flame Characteristics

  • A light blue color indicates a proper air-fuel mixture
  • A moderate length ensures complete combustion
  • Facilitates the formation of a stable thermal field

Emission Standards

  • No visible black smoke
  • Particulate matter ≤30mg (when equipped with low-NOx burners)
  • Significantly reduced pollutants

4. Technical Advantages Summary

FeatureBenefit
Corrugated Design15-20% greater heat transfer
Q345R Materials30% longer lifespan than standard designs
Wet-back System5-8% higher thermal efficiency
Precision WeldingWithstands 25% higher pressures

Conclusion

The corrugated furnace design represents YONGXING Boiler's engineering excellence in gas boiler technology. By combining advanced materials with innovative geometry, WNS series boilers deliver:

  • Unmatched combustion efficiency
  • Exceptional durability
  • Industry-leading thermal performance
  • Sustainable operation

For customized boiler solutions tailored to your specific operational requirements, visit www.yongxing-boiler.com
