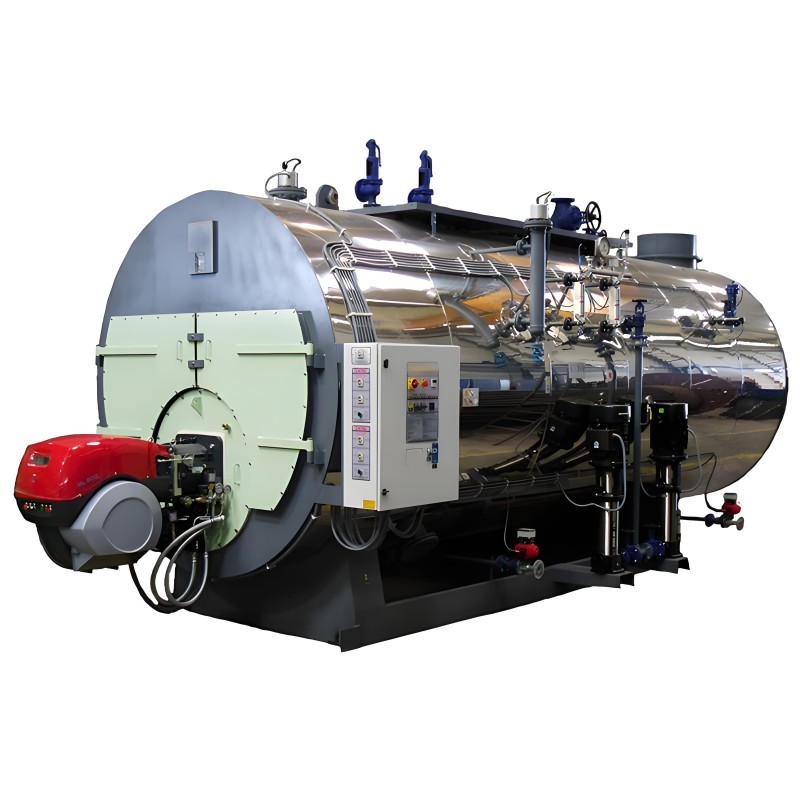

A Comprehensive Guide to All Auxiliary Equipment of YONGXING Boiler's Oil and Gas Fired Steam Boilers

When it comes to oil and gas fired steam boilers, the boiler itself is undoubtedly the core. However, the efficient, safe, and stable operation of the entire boiler system cannot be achieved without the support of a series of high - performance auxiliary equipment. YONGXING Boiler, as a well - known brand in the boiler industry, has always attached great importance to the matching and optimization of auxiliary equipment for its oil and gas fired steam boilers. These auxiliaries are carefully selected and designed to work in perfect harmony with the main boiler, ensuring that the entire system can meet the diverse needs of different industries while achieving excellent energy efficiency and environmental protection performance. In this blog, we will take a detailed look at all the key auxiliary equipment of YONGXING Boiler's oil and gas fired steam boilers, helping you gain a deeper understanding of the complete boiler system.

1. Combustion System Auxiliaries

The combustion system is the heart of the oil and gas fired steam boiler, and its auxiliaries directly determine the efficiency of fuel combustion and the emission of pollutants. YONGXING Boiler has equipped its boilers with a set of advanced combustion system auxiliaries to ensure full and clean combustion of fuel.

1.1 Burners

The burner is the core component of the combustion system, responsible for mixing fuel (oil or gas) with air in a certain proportion and igniting it to provide the necessary heat for the boiler. YONGXING Boiler selects high - quality burners from well - known international manufacturers, which have the following advantages:

Precise Control: The burners are equipped with advanced electronic control systems, which can accurately adjust the fuel supply and air intake according to the load changes of the boiler. This not only ensures that the fuel is fully burned, improving the thermal efficiency of the boiler, but also avoids the waste of fuel caused by excessive fuel supply.

Wide Adaptability: They can adapt to different types of oil and gas fuels, such as natural gas, liquefied petroleum gas, light oil, and heavy oil. This provides great flexibility for users to choose fuels according to local fuel supply conditions and cost factors.

Low Emission: With the adoption of advanced combustion technology, the burners can effectively reduce the emission of nitrogen oxides (NOx), sulfur dioxide (SO₂), and particulate matter (PM). This meets the increasingly strict environmental protection standards and helps users achieve green production.

1.2 Fuel Supply Pumps

For oil - fired steam boilers, fuel supply pumps play a crucial role in delivering fuel from the fuel tank to the burner. YONGXING Boiler uses high - efficiency and reliable fuel supply pumps, which have the following characteristics:

Stable Pressure: The pumps can maintain a stable fuel supply pressure, ensuring that the burner receives a continuous and uniform fuel flow. This is essential for the stable combustion of the burner and the normal operation of the boiler.

High Efficiency: The fuel supply pumps are designed with high - efficiency impellers and hydraulic systems, which can reduce energy consumption while ensuring sufficient fuel supply. This helps users reduce operating costs.

Corrosion Resistance: Since the fuel (especially heavy oil) may contain certain corrosive substances, the fuel supply pumps are made of corrosion - resistant materials. This extends the service life of the pumps and reduces maintenance costs.

1.3 Air Blowers

Air blowers are used to supply the necessary combustion air to the burner. YONGXING Boiler's air blowers are carefully selected to match the burners, ensuring that the air and fuel are fully mixed. The main advantages of these air blowers are:

Large Air Volume: They can provide a sufficient amount of air to meet the combustion needs of the burner under different load conditions. This ensures that the fuel is fully burned and improves the thermal efficiency of the boiler.

Low Noise: The air blowers are equipped with noise reduction devices, which can effectively reduce the noise generated during operation. This creates a good working environment for the boiler room and reduces the impact on the surrounding environment.

Easy Maintenance: The structure of the air blowers is simple and compact, making maintenance and repair work easier. This reduces the downtime of the boiler system and improves the reliability of the system.

2. Feed Water System Auxiliaries

The feed water system is responsible for supplying qualified water to the boiler, and its auxiliaries are crucial for ensuring the safe and efficient operation of the boiler. YONGXING Boiler's feed water system auxiliaries are designed to meet the strict requirements of boiler water quality and water supply.

2.1 Feed Water Pumps

Feed water pumps are the core equipment of the feed water system, responsible for delivering the treated feed water to the boiler drum. YONGXING Boiler uses high - pressure and high - efficiency feed water pumps, which have the following advantages:

High Pressure Resistance: The pumps can withstand the high pressure inside the boiler drum, ensuring that the feed water can be smoothly injected into the boiler. This is essential for the normal operation of the high - pressure steam boiler.

High Efficiency: With the adoption of advanced pump design technology, the feed water pumps have high efficiency, which can reduce energy consumption and operating costs. At the same time, the high efficiency also ensures that the feed water can be supplied in a timely manner to meet the water demand of the boiler.

Reliable Operation: The feed water pumps are equipped with advanced monitoring and protection devices, such as over - temperature protection, over - pressure protection, and overload protection. These devices can effectively prevent the pumps from being damaged due to abnormal working conditions, ensuring the reliable operation of the feed water system.

2.2 Water Treatment Equipment

The quality of boiler feed water has a significant impact on the service life of the boiler and the quality of steam. If the feed water contains impurities such as calcium, magnesium, and iron ions, it will form scale on the heating surface of the boiler, reducing the thermal efficiency of the boiler and even causing boiler tube explosion. Therefore, YONGXING Boiler is equipped with a complete set of water treatment equipment for its oil and gas fired steam boilers, including:

Water Softeners: Water softeners are used to remove calcium and magnesium ions from the feed water, preventing the formation of scale. YONGXING Boiler's water softeners use advanced ion exchange technology, which has high softening efficiency and stable performance. They can automatically regenerate the ion exchange resin, reducing manual operation and maintenance.

Deaerators: Dissolved oxygen in the feed water will cause corrosion to the boiler's metal components. Deaerators are used to remove dissolved oxygen from the feed water. YONGXING Boiler's deaerators adopt thermal deaeration technology, which can effectively remove dissolved oxygen and other non - condensable gases from the feed water. This reduces the corrosion of the boiler and extends the service life of the boiler.

Chemical Dosing Systems: In addition to water softening and deaeration, chemical dosing is also an important part of boiler water treatment. Chemical dosing systems are used to add chemicals (such as corrosion inhibitors, scale inhibitors, and pH adjusters) to the feed water to further improve the water quality and protect the boiler. YONGXING Boiler's chemical dosing systems are fully automated, which can accurately control the dosage of chemicals and ensure the stability of water quality.

3. Steam and Condensate System Auxiliaries

The steam and condensate system is responsible for collecting, transporting, and recycling steam and condensate. The auxiliaries in this system play an important role in improving the energy efficiency of the boiler system and reducing water consumption.

3.1 Steam Separators

Steam generated by the boiler may contain a certain amount of water droplets. If these water droplets enter the steam pipeline and the user's equipment, it will affect the quality of steam and the normal operation of the equipment. Steam separators are used to separate water droplets from the steam, ensuring that dry steam is supplied to the user. YONGXING Boiler's steam separators have the following advantages:

High Separation Efficiency: They use advanced separation technology, such as cyclonic separation and baffle separation, which can effectively separate water droplets from the steam. The separation efficiency can reach more than 99%, ensuring the quality of the steam.

Small Pressure Loss: The design of the steam separators minimizes the pressure loss of the steam, ensuring that the steam can be transported to the user's equipment with sufficient pressure. This avoids the loss of steam energy and improves the energy efficiency of the system.

Easy Installation and Maintenance: The steam separators have a compact structure and are easy to install in the steam pipeline. At the same time, they are easy to clean and maintain, reducing the workload of maintenance personnel.

3.2 Condensate Recovery Pumps

Condensate is the water formed by the condensation of steam after heat exchange. It contains a large amount of sensible heat and has high water quality. Recycling condensate can not only save water resources but also reduce the energy consumption required for heating the feed water. YONGXING Boiler's condensate recovery pumps are designed to recover and transport condensate, with the following characteristics:

High Lift: The pumps have a high lift, which can transport the condensate from the low - pressure condensate tank to the high - pressure feed water system. This ensures that the condensate can be effectively recycled and reused.

Corrosion Resistance: Condensate may have a certain degree of acidity or alkalinity, so the condensate recovery pumps are made of corrosion - resistant materials. This extends the service life of the pumps and ensures the reliable operation of the condensate recovery system.

Energy Saving: The condensate recovery pumps are equipped with high - efficiency motors and advanced control systems, which can adjust the speed of the pumps according to the amount of condensate. This reduces energy consumption and operating costs.

4. Flue Gas Treatment System Auxiliaries

With the increasing emphasis on environmental protection, the treatment of boiler flue gas has become an important part of the boiler system. YONGXING Boiler's flue gas treatment system auxiliaries are designed to reduce the emission of pollutants in the flue gas and meet the national environmental protection standards.

4.1 Dust Collectors

Dust collectors are used to remove particulate matter (PM) from the flue gas. YONGXING Boiler uses high - efficiency dust collectors, such as bag filters and electrostatic precipitators, which have the following advantages:

High Dust Removal Efficiency: The dust collectors can effectively remove particulate matter of different sizes from the flue gas. The dust removal efficiency can reach more than 99.9%, ensuring that the emission concentration of particulate matter meets the strict environmental protection standards.

Stable Performance: They have a stable operating performance and can adapt to the changes in flue gas volume and dust concentration. This ensures that the dust removal effect is not affected by the changes in the boiler's operating conditions.

Low Resistance: The design of the dust collectors minimizes the resistance of the flue gas, reducing the energy consumption of the induced draft fan. This helps users reduce operating costs.

4.2 Desulfurization Equipment

Sulfur dioxide (SO₂) in the flue gas is one of the main pollutants that cause acid rain. Desulfurization equipment is used to remove SO₂ from the flue gas. YONGXING Boiler's desulfurization equipment mainly adopts wet desulfurization technology, which has the following characteristics:

High Desulfurization Efficiency: The wet desulfurization equipment can remove more than 95% of SO₂ from the flue gas, ensuring that the emission concentration of SO₂ meets the environmental protection standards.

Wide Adaptability: It can adapt to different sulfur contents in the fuel, whether it is high - sulfur fuel or low - sulfur fuel, it can achieve good desulfurization effect.

Low Operating Cost: The wet desulfurization technology uses cheap desulfurizing agents (such as limestone), and the by - products (gypsum) can be recycled. This reduces the operating cost of the desulfurization system.

4.3 Denitrification Equipment

Nitrogen oxides (NOx) in the flue gas are another major pollutant that causes air pollution. Denitrification equipment is used to remove NOx from the flue gas. YONGXING Boiler's denitrification equipment mainly adopts selective catalytic reduction (SCR) technology, which has the following advantages:

High Denitrification Efficiency: The SCR technology can remove more than 90% of NOx from the flue gas, ensuring that the emission concentration of NOx meets the strict environmental protection standards.

Stable Operation: The SCR system has a stable operating performance and can adapt to the changes in flue gas temperature, flow rate, and NOx concentration. This ensures that the denitrification effect is not affected by the changes in the boiler's operating conditions.

Low Secondary Pollution: The SCR technology uses ammonia as a reducing agent, which reacts with NOx to form harmless nitrogen and water. There is no secondary pollution generated during the reaction process, which is environmentally friendly.

5. Control and Monitoring System Auxiliaries

The control and monitoring system is the "brain" of the boiler system, responsible for monitoring the operating parameters of the boiler and its auxiliaries, and controlling the operation of the system. YONGXING Boiler's control and monitoring system auxiliaries are designed to ensure the safe, stable, and efficient operation of the boiler system.

5.1 Boiler Control Panels

Boiler control panels are the core of the control system, which integrate various control components and instruments. YONGXING Boiler's boiler control panels are equipped with advanced programmable logic controllers (PLCs) and human - machine interfaces (HMIs), which have the following functions:

Parameter Monitoring: The control panels can monitor various operating parameters of the boiler, such as steam pressure, steam temperature, water level in the boiler drum, feed water temperature, and flue gas temperature. These parameters are displayed in real - time on the HMI, allowing operators to keep track of the operating status of the boiler at any time.

Automatic Control: Based on the monitored parameters, the control panels can automatically adjust the operation of the burner, feed water pump, and other auxiliaries. For example, when the steam pressure is lower than the set value, the control panel will increase the fuel supply and air intake of the burner to increase the heat output of the boiler; when the water level in the boiler drum is lower than the set value, the control panel will start the feed water pump to supply water to the boiler. This realizes the automatic control of the boiler system, reducing the workload of operators and improving the stability of the system.

Alarm and Protection: When the operating parameters of the boiler exceed the set limits, the control panels will issue an alarm signal and take corresponding protection measures. For example, when the steam pressure exceeds the maximum allowable value, the control panel will automatically close the fuel supply valve of the burner and open the safety valve to release the pressure; when the water level in the boiler drum is too low, the control panel will stop the burner to prevent the boiler from drying out. These alarm and protection functions can effectively prevent accidents and ensure the safe operation of the boiler.

5.2 Instrumentation

In addition to the boiler control panels, YONGXING Boiler's oil and gas fired steam boilers are also equipped with a complete set of instrumentation to monitor the operating parameters of the boiler and its auxiliaries. These instruments include:

Pressure Gauges: Used to measure the steam pressure, feed water pressure, fuel pressure, and air pressure in the boiler system. The pressure gauges are accurate and reliable, ensuring that operators can obtain accurate pressure data.

Temperature Gauges: Used to measure the steam temperature, feed water temperature, flue gas temperature, and fuel temperature. The temperature gauges have a wide measuring range and high accuracy, which can meet the monitoring needs of different parts of the boiler system.

Water Level Gauges: Used to measure the water level in the boiler drum. YONGXING Boiler uses both glass tube water level gauges and remote - transmission water level gauges. The glass tube water level gauge allows operators to directly observe the water level in the boiler drum, while the remote - transmission water level gauge can transmit the water level data to the boiler control panel for real - time monitoring and control.

Flow Meters: Used to measure the flow rate of feed water, fuel, and steam. The flow meters can provide accurate flow data, which is helpful for operators to analyze the operating status of the boiler system and optimize the operation parameters.

Conclusion

The auxiliary equipment of YONGXING Boiler's oil and gas fired steam boilers is an integral part of the entire boiler system. Each auxiliary equipment plays a unique and important role, and they work together to ensure the efficient, safe, and stable operation of the boiler. From the combustion system auxiliaries that ensure full fuel combustion to the feed water system auxiliaries that provide qualified feed water, from the steam and condensate system auxiliaries that improve energy efficiency to the flue gas treatment system auxiliaries that meet environmental protection requirements, and from the control and monitoring system auxiliaries that ensure system control and safety, every detail of YONGXING Boiler's auxiliary equipment reflects its pursuit of high quality, high efficiency, and environmental protection.

If you are looking for a reliable oil and gas fired steam boiler system, YONGXING Boiler's products with advanced and complete auxiliary equipment are definitely your ideal choice. We believe that with the support of YONGXING Boiler's high - quality auxiliary equipment, your production process will be more efficient, environmentally friendly, and reliable.
